Description

Application:

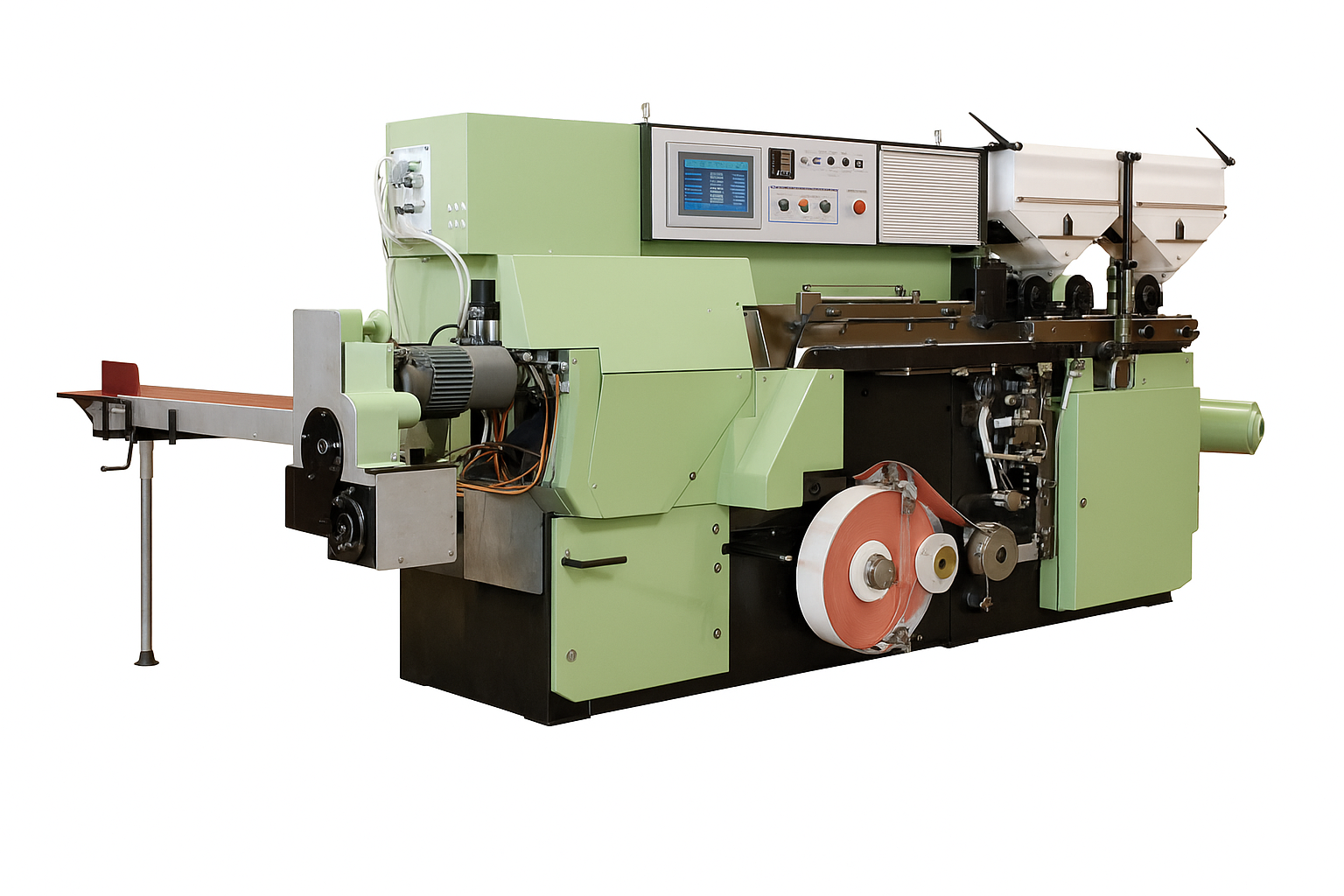

This product can combine two different kinds of filter rods made of different materials with different length, and it is used for producing special dual filter rods for cigarette making.

Features:

01 Transmission System:
The whole machine is driven by 9 sets of AC servo motors and 5 sets of normal motors, greatly simplifying the mechanical structure and improving the transmission precision. As the result, operation of this machine is more precise, and thus high quality output is guaranteed.

02 Gap Inspection Device:
It adopts light-wave technology which could produce different electric signals from different materials. After being counted, the signals are sent to PLC to be actively set. This can guarantee the stability of gap and symmetry in both sides.

Technical Specifications:

• Capacity: 200 meters/min
• Filter Plug Diameter: 7.64~7.79mm
• Filter Plug Length: 64150mm
• Dual Filter Section Ratio: tailor made as per charcoal filter and acetate filter length
• Requirements for the Raw Filter Rods:
  • L1: ±0.3mm (Charcoal Filter)
  • L2: ±0.3mm (Acetate Filter)
  • Diameter ±0.1mm, Roundness ≤0.035mm
• Overall Size: 3200mm x 880mm x 2300mm
