Description

Application:

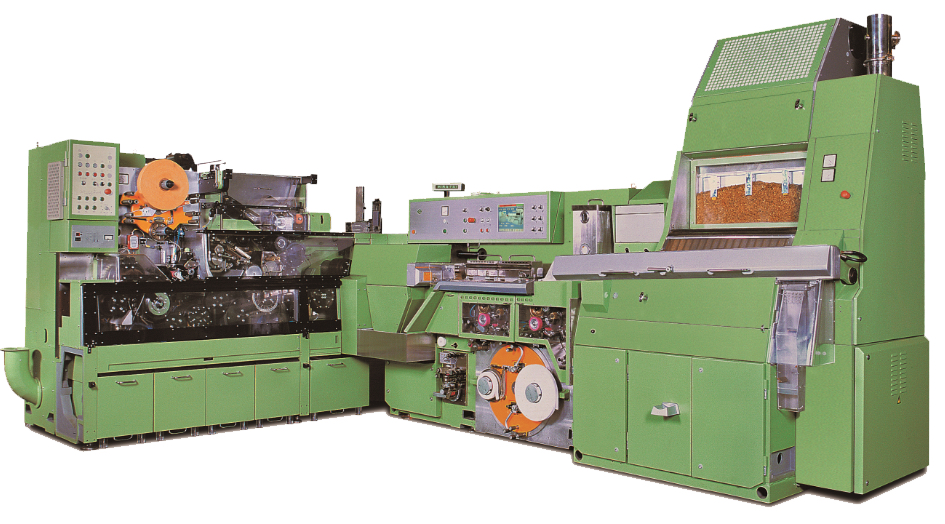

This product is for making filter cigarette with different diameter and length. It consists of tobacco rod maker, filter assembler, and tray loader. It can be linked with downstream cigarette packer by tray loader and tray unloader, or it can be directly linked with cigarette packer by linkup system.

Technical Specifications:

Capacity: 7,000 cigs/min (for king size cigarette)
Tobacco Rod Speed: 490m/min
Cigarette Diameter: 5.4mm~9mm
Cigarette Length: 65mm~120mm
Filter Length: 10mm~25mm (one filter cut into six) or 15mm~35mm (one into four)
Overall Dimension (Length × Width × Height): 5072mm × 3928mm × 2600mm

Features:

01. High Quality of Cigarette Output:
It has functions of filter missing detection, air leakage inspection and loose-end detection to ensure qualified cigarette output.

02. Complete Trouble Shooting System:
It has function of fault alarm, fault displaying and fault diagnosis which can help shooting the trouble effectively.

03. Perfect Cigarette Weight Control System:
By adopting microwave weight control system, it can control the cigarette weight precisely and thus save cut tobacco consumption.

04. Low Wastage:
This machine is with stable running performance and high operating efficiency, and as the result, the wastage ratio is extremely low and running cost of this machine is reduced.
